Power transformers are among the most expensive and vital assets in any electrical distribution network. In the professional field of power engineering, the vulnerability of these assets to atmospheric discharges and switching transients is a primary concern. At LEITAI, we specialize in advanced overvoltage mitigation strategies. A lightning arrester (LA) shields your transformer in three fundamental ways: it diverts high-energy surges, prevents insulation degradation, and ensures continuous power availability. These devices are indispensable for industrial and utility operations because:

• Lightning strikes contribute to approximately 13% of all power transformer failures globally, leading to millions of dollars in losses.
• Without a robust protection scheme, a single surge can lead to a catastrophic fire or total grid shutdown.

By implementing professional-grade YH5WS 10kV lightning arresters, facility managers can significantly mitigate these risks, ensuring that equipment remains operational even in the harshest meteorological conditions.

Key Takeaways for Infrastructure Managers

1. Advanced Surge Diversion and Clamping

Physics of Diverting High-Voltage Surges

The primary function of a lightning arrester is to act as a voltage-sensitive switch. Under normal operating conditions, the arrester exhibits extremely high resistance, preventing any current from leaking to the ground. However, when a transient overvoltage wave (from lightning or capacitor switching) hits the line, the arrester’s internal semiconducting material transitions to a low-resistance state in microseconds.

This rapid transition creates an “emergency exit” for the excess electricity. At LEITAI, our engineering team utilizes premium Metal Oxide Varistor (MOV) blocks that offer superior non-linear resistance characteristics. By grounding the excess energy, the LA ensures that the voltage “seen” by the transformer bushings never exceeds its Basic Insulation Level (BIL). For comprehensive facility safety, integrating a high voltage surge arrester into your substation design is the most reliable method to manage these high-energy events.

Precision Grounding of Excess Energy

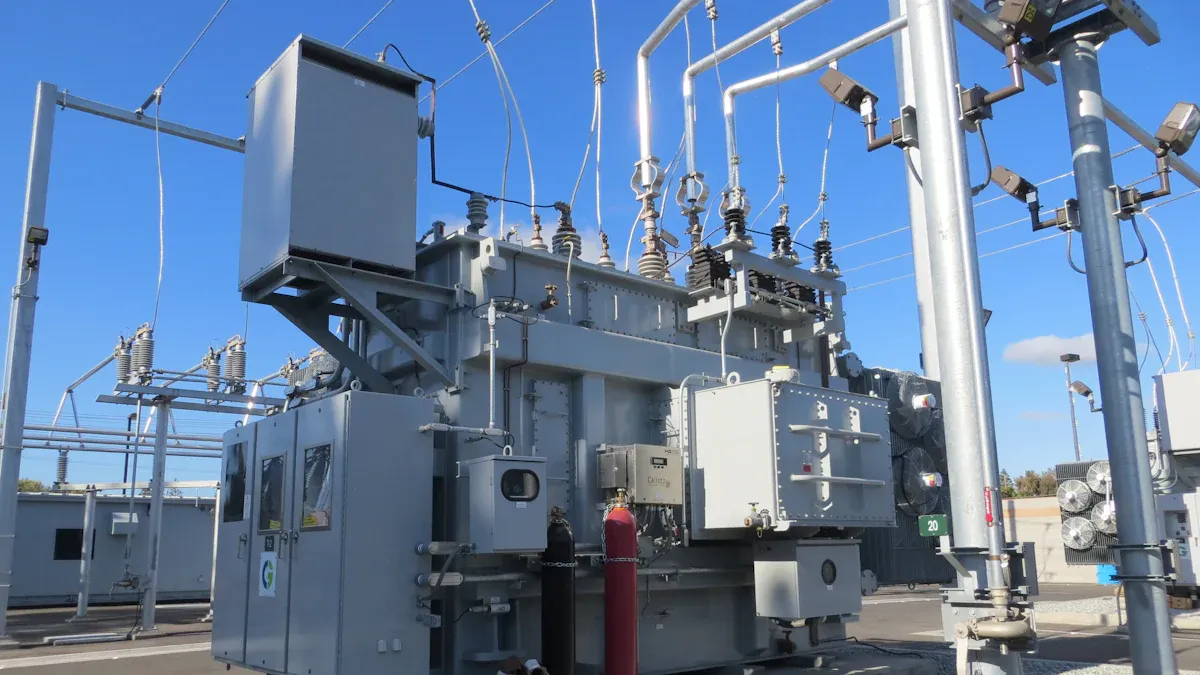

A surge can enter a substation from various directions—direct strikes to overhead lines or induced surges from nearby strikes. The lightning arrester is strategically positioned at the high-voltage bushings to catch these waves. By providing a path of least resistance, the arrester ensures that the current magnitude flowing through the transformer is kept within safe limits.

• Microsecond Response: Modern ZnO (Zinc Oxide) arresters from LEITAI react to surges faster than the wave can travel through the windings.
• Flashover Prevention: By clamping the voltage, arresters prevent air-side flashovers between bushings and the transformer tank.
• Follow Current Interruption: After the surge passes, the arrester must immediately return to its insulating state to stop “power frequency follow current,” which could lead to a permanent fault.

Limiting Steep-Front Overvoltage Waves

Lightning surges are characterized by extremely steep wave fronts (high dV/dt). This rapid increase in voltage can cause uneven distribution of voltage across the transformer windings, stressing the first few turns most heavily. LEITAI lightning arresters truncate these waves, ensuring the voltage remains below the damaging threshold for the transformer’s internal assembly.

Preserving Transformer Component Health

The protective action of the arrester extends to every internal part of the transformer. By maintaining a stable voltage environment, the LA minimizes the mechanical and thermal stress on the internal components.

Safeguarding Windings from Turn-to-Turn Faults

The windings are the “heart” of the transformer. When a high-voltage surge enters the windings, it can jump across the paper insulation between adjacent turns of copper. This creates a turn-to-turn short circuit, which leads to localized overheating and eventually total winding failure. LEITAI arresters ensure the potential difference between turns stays within the design limits of the paper insulation.

Preserving Dielectric Fluid and Insulation Safety

Transformer oil acts as both a coolant and a dielectric insulator. High-voltage transients cause “partial discharge” within the oil, which leads to the formation of gases and the carbonization of the oil. Over time, this degrades the insulation’s ability to withstand normal operating voltages. Lightning arresters act as a preventive tool, stopping these microscopic breakdowns before they aggregate into a major failure.

Engineering Insight: According to the International Electrotechnical Commission (IEC), proper insulation coordination involving surge arresters can increase transformer life expectancy by up to 25%.

2. Mitigating Transformer Damage Risks

Systematic Prevention of Insulation Breakdown

The dielectric strength of solid and liquid insulation is finite. When lightning strikes an unprotected line, the resulting surge can easily exceed the BIL of a 10kV or 35kV transformer. Once the insulation is punctured, the transformer is effectively “dead.” Repairing a punctured winding usually requires a full shop rebuild, costing up to 60% of the price of a new unit.

Combatting Internal Short Circuits

A short circuit is the most feared event for a substation operator. When the insulation is compromised by a surge, the normal line current follows the path of the arc, leading to massive heat generation. This often results in the “tank bulging” or even a transformer explosion. LEITAI’s gapless MOV technology ensures that these surge paths are diverted externally, keeping the internal environment hermetically sealed and safe from arcs.

Avoiding Catastrophic Explosive Failures

Bushover and flashovers often leave carbon tracks on the porcelain bushings. These tracks are conductive and can cause a secondary fault even after the storm has passed. By limiting the overvoltage, lightning arresters prevent these high-energy arcs from ever forming, protecting the structural integrity of the transformer tank and preventing environmental oil spills.

Advanced Overheating and Thermal Protection

Transient surges are not just voltage events; they are energy events. The “area under the curve” represents energy that must be dissipated. If this energy is dumped into the transformer windings, it causes an instantaneous rise in temperature.

Thermal Effects of Lightning Discharges

Lightning can induce circulating currents in the transformer tank and core. These eddy currents lead to localized “hot spots.” While the transformer’s cooling system (radiators and fans) is designed for steady-state loads, it cannot handle the millisecond heat burst from a lightning strike. LEITAI arresters take on this thermal burden, dissipating the heat within their own MOV blocks rather than letting it enter the transformer core.

3. Ensuring Reliable Power Supply and Economic Stability

Maintaining Grid Integrity

For industrial facilities, downtime is the enemy. A transformer failure doesn’t just mean a dark building; it means halted production lines, lost data, and compromised safety systems. LEITAI lightning arresters are an investment in business continuity. By maintaining consistent operation during storms, they help avoid the “ripple effect” of grid instability.

Prevention of Cascading Power Outages

When a transformer fails, the protection relays trip the circuit breakers, often causing a localized blackout. In some cases, this can lead to cascading failures across the grid. A properly installed lightning arrester handles the surge silently and allows the transformer to continue supplying power without the breaker ever tripping. This “transparent” protection is vital for critical infrastructure like hospitals and data centers.

Strategic Infrastructure Support

In a distributed grid, every transformer is a node. Protecting these nodes with LEITAI technology ensures that the entire network remains resilient. Our arresters support the grid’s infrastructure by absorbing the “pollution” of switching surges that occur during daily load shifts, not just during rare lightning events.

Professional Tip: Regular maintenance and inspection of your LEITAI lightning arresters can reduce unplanned transformer downtime by over 40%.

Substantial Reduction in Operational Costs

While the initial cost of a lightning arrester is small, the “cost of failure” is enormous. From an asset management perspective, the LA is the most cost-effective insurance policy available to an electrical engineer.

Direct Repair and Replacement Savings

The economic impact of a surge-damaged transformer is multi-faceted: the cost of a new transformer, the cost of specialized logistics (cranes and transport), and the labor of installation. Statistics show that 68% of transformers damaged by surges require extensive rewinding. By preventing this damage, LEITAI arresters pay for themselves within a single storm season.

Comprehensive Lightning Arrester Selection Guide

Selecting the correct protection is not a “one size fits all” process. The rating of the arrester must be carefully coordinated with the transformer’s voltage and BIL.

LEITAI Arrester Types for Transformer Protection

Advanced Metal Oxide Varistors (MOV)

MOVs are the industry standard for modern protection. They consist of zinc oxide grains that act as a high-speed valve. LEITAI MOVs are preferred for their stability and long-term reliability in both indoor and outdoor environments. They are the ideal choice for 10kV, 35kV, and 110kV transformer substations.

Silicon Carbide (Legacy vs. Modern Needs)

Silicon Carbide arresters were the standard for decades. While robust, they require spark gaps to work, which can lead to delayed response times and higher residual voltages. For critical modern transformers, LEITAI recommends the transition to ZnO gapless technology for superior protection levels.

Professional Installation Best Practices

The effectiveness of a lightning arrester is 50% product quality and 50% installation geometry. Even the best LEITAI arrester can fail to protect a transformer if the lead wires are too long.

• Lead Length Minimization: Every meter of wire adds inductive reactance. Keep the connection between the line, the arrester, and the transformer bushing as short and straight as possible (ideally under 1 meter).
• Proximity: The arrester should be mounted directly on the transformer tank or as close as physically possible to the high-voltage bushings.
• Grounding Path: The ground wire must have a low-impedance path to the main substation earth grid. Use braided copper for high-frequency surge currents.

Alert: A high-resistance ground connection (above 5 ohms) can render even the most expensive lightning arrester ineffective. Always verify your grounding system integrity.

Compliance, Safety, and Global Standards

Adhering to international standards ensures that your protection scheme is scientifically sound and legally defensible in case of insurance claims.

Key Industry Standards

LEITAI products are designed and tested in accordance with several major standards organizations, including the IEEE Standards Association. These standards define how an arrester must behave under pressure.

Environmental and Geographic Impact

Protection requirements vary significantly by location. A transformer in an urban center shielded by tall buildings has a different risk profile than a rural transformer on an exposed hillside. Rural transformers often require arresters with a higher “energy class” to handle the more frequent and intense direct strikes common in open plains.

Debunking Common Lightning Arrester Myths

Misinformation can lead to dangerous gaps in your protection strategy. Let’s clarify some common misconceptions.

Myth: “Arresters Only Work During Lightning Storms”

Reality: While called “lightning” arresters, these devices spend most of their time protecting against “switching surges.” These occur every time a large motor is started, a circuit breaker is opened, or a capacitor bank is toggled. These daily surges can be just as damaging over time as a single lightning strike.

Myth: “A Lightning Rod is Enough to Protect My Transformer”

Reality: A lightning rod (Franklin rod) protects the structure from catching fire, but it does nothing to stop the surge from traveling down the wires into the transformer. You need both structural protection and internal electrical protection (the arrester) for a complete system.

The Importance of Professional Maintenance

A lightning arrester is a “silent guardian,” but it doesn’t last forever. Every surge it absorbs wears down the MOV material slightly. Professional testing is the only way to ensure it will work when the next storm hits.

• Monthly Visual Inspections: Check for signs of soot, cracks in the housing, or the operation of the “disconnector” (a small device that drops a wire if the arrester fails).
• Annual Leakage Current Testing: Use a specialized meter to measure the resistive leakage current. An increase in this current indicates that the MOV blocks are aging and may soon fail.
• Post-Strike Testing: After any significant lightning event, the arrester should be inspected for thermal damage or discoloration.

Summary: LEITAI’s Commitment to Transformer Safety

In conclusion, a lightning arrester is the most critical safety component for your power transformer. It provides surge diversion, insulation preservation, and grid reliability. Without this protection, your infrastructure is at the mercy of nature’s unpredictable power.

By selecting high-quality LEITAI products and following rigorous installation and maintenance protocols, you can ensure that your electrical assets serve your organization for decades to come. If you are designing a new substation or upgrading an existing one, ensure that lightning protection is at the top of your priority list.



Frequently Asked Questions (FAQ)

What exactly does a LEITAI lightning arrester do?

It acts as a high-speed bypass valve for electricity. When voltage spikes occur, it opens a path to the ground to divert the surge away from the transformer, then instantly closes once the voltage returns to normal levels.

How often should I replace my arresters?

Most arresters have a design life of 15-20 years. However, in areas with high lightning activity, they may need replacement sooner. Always replace an arrester if the disconnector has tripped or if leakage current tests show a significant upward trend.

Can I install a lightning arrester myself?

Installation on high-voltage transformers involves significant safety risks and requires specialized knowledge of insulation coordination. LEITAI strongly recommends that only licensed high-voltage electricians perform installation and testing.

What is the difference between a surge arrester and a lightning arrester?

The terms are often used interchangeably in the industry. Technically, “lightning arrester” usually refers to high-voltage external protection, while “surge protective device” (SPD) often refers to lower-voltage internal protection, though both use similar MOV technology.

Does LEITAI offer protection for 10kV transformers?

Yes, our YH5WS series is specifically designed for 10kV distribution transformers, providing high-energy capacity in a durable polymer housing.
